Dongfeng Mini Diesel Oil Fuel Tanker Delivery Transport Dispenser Refueling Truck
Mini Diesel Oil Fuel Tanker Delivery Transport Dispenser Refueling Trucks. These are compact fuel bowsers designed for mobile refueling and transport, especially useful in tight urban areas, construction sites, or remote locations
Dongfeng Mini Diesel Oil Fuel Tanker Truck is challenging because Dongfeng manufactures many mini/small fuel tanker models with varying
- Function: aircraft refueling truck is generally used to transport jet fuel.
- Composition: 8000 liters aluminium alloy tank mounted on a 4X2 HOWO chassis, fuel dispenser, pump and piping system.
- Operation: oil loading or discharging by pump taking power from truck chassis.
- Safety: technology of accident prevention and emergency protection.
Dongfeng Mini Diesel Oil Fuel Tanker Delivery Transport Dispenser Refueling Truck Technical sheet :
| Parameter | Typical Specification | Notes |
| Fuel Dispenser | Optional (Computerized Tax-Control Dispenser Unit) | A key feature of "Refueling Trucks." |
| Refueling Flow Rate | 30 L/min to 50L/min | Depends on the dispenser model installed. |
| Refueling Hose | 15 meters to 20 meters | Typically on an automatic return reel. |
| Oil Pump | Fuel Pump (Gear Pump or similar) | Equipped for self-suction and discharge. |
| Safety Features | Manhole, Emergency Cut-off Valve (Foot Valve), Breathing Valve, Anti-overflow Probe, Static Conducting Wire Reel. | Essential for safe fuel transport and dispensing. |
| Parameter | Typical Specification Range | Notes |
| Engine Brand/Model | Yuchai, Chaochai, Cummins (smaller models) | Varies significantly by specific truck model and HP. |
| Engine Horsepower (HP) | 90 HP to 120 HP | Suitable power for this size class. |
| Emission Standard | Euro 2 / Euro 3 / Euro 5 / Euro 6 | Highly dependent on the export/sales country's regulations. |
| Fuel Type | Diesel |
| Transmission | Manual, 5 or 6 forward gears + 1 reverse |
| Wheelbase | Approx. 3,300 mm |
| Tire Specification | 7.00 R 16 or 7.50R16 | Typically 6 wheels + 1 spare tire. |
| Brake System | Oil Brake or Air Brake | Air brakes are common on slightly heavier models. |
| Max Speed | Approx. 80 - 95 km/h |
| Parameter Category | Typical Specification Range | Notes |
| Vehicle Model | Dongfeng (various models like EQ1060, depending on market) | A common small 4x2 chassis. |
| Tank Capacity | 4,500 L to 5,000 L (approx. 5 tons) | Often one compartment, but multi-compartment optional. |
| Drive Type | 4 * 2 | Standard for mini/small trucks. |
| Steering Type | Left Hand Drive (LHD) / Right Hand Drive (RHD) | Depends on the target market. |
| Overall Dimensions (L x W x H) | 6000* 2000 *2500 | Varies slightly by manufacturer and tank shape. |
| Gross Vehicle Weight (GVW) | 7,300 kg | The maximum allowed operating weight. |
| Curb Weight | 3,500 kg to 3,700 kg | Weight of the empty truck. |
| Tank Material | Q235 Carbon Steel | Standard material (4mm thickness is common). |
| Transport Medium | Diesel Oil, Gasoline, Kerosene, etc. | Certified for various liquid fuels. |
| Feature | Description |
| Tank Capacity | Typically ranges from 3,000 Liters (3 CBM) up to 8,000 Liters (8 CBM), with some models up to 10,000 Liters (10 CBM) falling into the "mini/small" or light-duty category. |
| Chassis | Commonly a Dongfeng chassis, often a 4x2 drive configuration. Other chassis brands like Isuzu are also sometimes used with Dongfeng-manufactured tanker bodies. |
| Engine & Emission | Diesel engines with power around 90 HP to 120 HP are common for the mini models. They are available with various emission standards like Euro 2, Euro 3, Euro 4, or Euro 5/6, depending on the market. |
| Tank Material | Standard is usually Q235 Carbon Steel (typically 4mm to 5mm thick). Options for Stainless Steel or Aluminum Alloy are also available. |
| Refueling System | Equipped with an oil pump and often a computerized fuel dispenser unit (tax-controlled is an option) with a refueling nozzle and a long hose reel (e.g., 15 meters). |
| Safety Features | Includes essential safety items like: manholes, emergency cut-off valves (bottom valve), breathing valves, anti-static ground reels, and fire extinguishers. Advanced features like vapor recovery and anti-overflow probes are optional. |

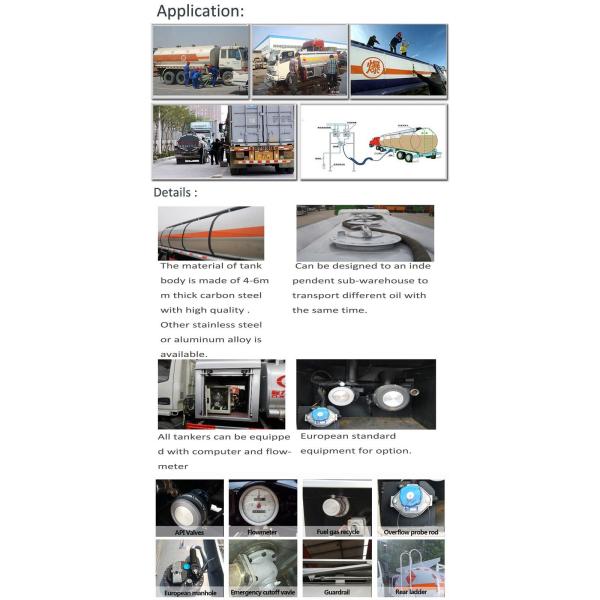

Dongfeng Mini Diesel Oil Fuel Tanker Delivery Transport Dispenser Refueling Truck Application:
- Fuel Delivery: Transporting fuel from a depot to an end-user site.
- On-Site Refueling: Dispensing fuel directly to heavy equipment, generators, buses, construction machinery, and other vehicles at mines, farms, construction sites, ports, or remote locations, often bypassing traditional gas stations.
About Chengli Special Automobile Co., Ltd
- Established: September 2004.
- Headquarters: Suizhou City, Hubei Province, China, which is known as the "Capital of China's Special Purpose Vehicles."
- Scale: The company has grown into a large, diversified group (CLW Group) with multiple subsidiaries and a vast industrial park. It boasts substantial assets, a large area, and thousands of employees.
- Focus: It specializes in the research, development, manufacturing, and sales of a comprehensive range of special-purpose trucks, new energy vehicles, automotive parts, and emergency equipment.
- Market Position: Chengli is recognized as a leading enterprise in the Chinese specialized automobile industry, known for its extensive product variety and complete production qualifications.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market:
- Export Volume: Chengli exports its special trucks to more than 50 countries and regions globally.
- Key Regions: Their overseas market is notably diverse, with a strong focus on:
- Africa: A major market that includes countries in East Africa (e.g., Tanzania, Kenya, Uganda, Malawi), West Africa (e.g., Nigeria, Ghana, Senegal, Togo, Benin, Niger), and others like South Africa, Angola, Congo, and Algeria.
- Southeast Asia: Including countries like the Philippines, Malaysia, Vietnam, Myanmar, Thailand, Cambodia, and Laos.
- Central Asia/Middle East: Markets like Russia, Kazakhstan, Uzbekistan, Iraq, and countries in the Middle East.
- South America: Including countries like Peru, Bolivia, Panama, Chile, and Venezuela.
- Oceania: Markets such as Australia and New Zealand.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
